Voltaic ICON concrete solar tile — installed detail

By Voltaic

ICON

Concrete Solar Roof Tile

Voltaic’s ICON is a genuine concrete roof tile, the same roofing format used on premium homes for over a century, in the same category as slate. The solar cell is cast directly into the tile at the factory. On the roof, it looks exactly like concrete tile because it is concrete tile.

This is what drew us to it. There is no visual compromise. No panels. No hardware. No indication that anything was added to the roof. The home looks exactly as it should, and it happens to be generating power.

>21.6%
Cell Efficiency
30 yr
Roof Warranty
25 yr
Power Warranty
1,540W
Per Roofing Square
180 mph
Wind Tested
Class A
Fire Rated

ICON Specifications

Max Power per Tile17.5W
Cell EfficiencyGreater than 21.6%
Watts Per Roofing Square1,540W
Approved Pitches2.5/12 and above
Maximum System Voltage600 VDC
Fire RatingClass A — ASTM E108 / UL 790
Wind ResistanceTested to 180 mph uplift
Hail RatingClass 4 — 1.75 inch impact tested
SurfaceNon-reflective DuPont mineral coating
Roofing PlatformWestlake Saxony 900 profile
Voltaic Tycoon integrated solar metal roofing

By Voltaic

Tycoon

Solar Metal Roofing

Where the architecture calls for metal rather than tile, Voltaic’s Tycoon brings the same idea to metal roofing. The solar cell is built directly into the panel. The clean lines and long lifespan metal is known for are completely preserved.

For homes where a concrete tile profile would be wrong, Tycoon lets us deliver the same invisible power generation without any aesthetic compromise. The roof looks like a beautiful metal roof. That’s the whole point.

How the system works

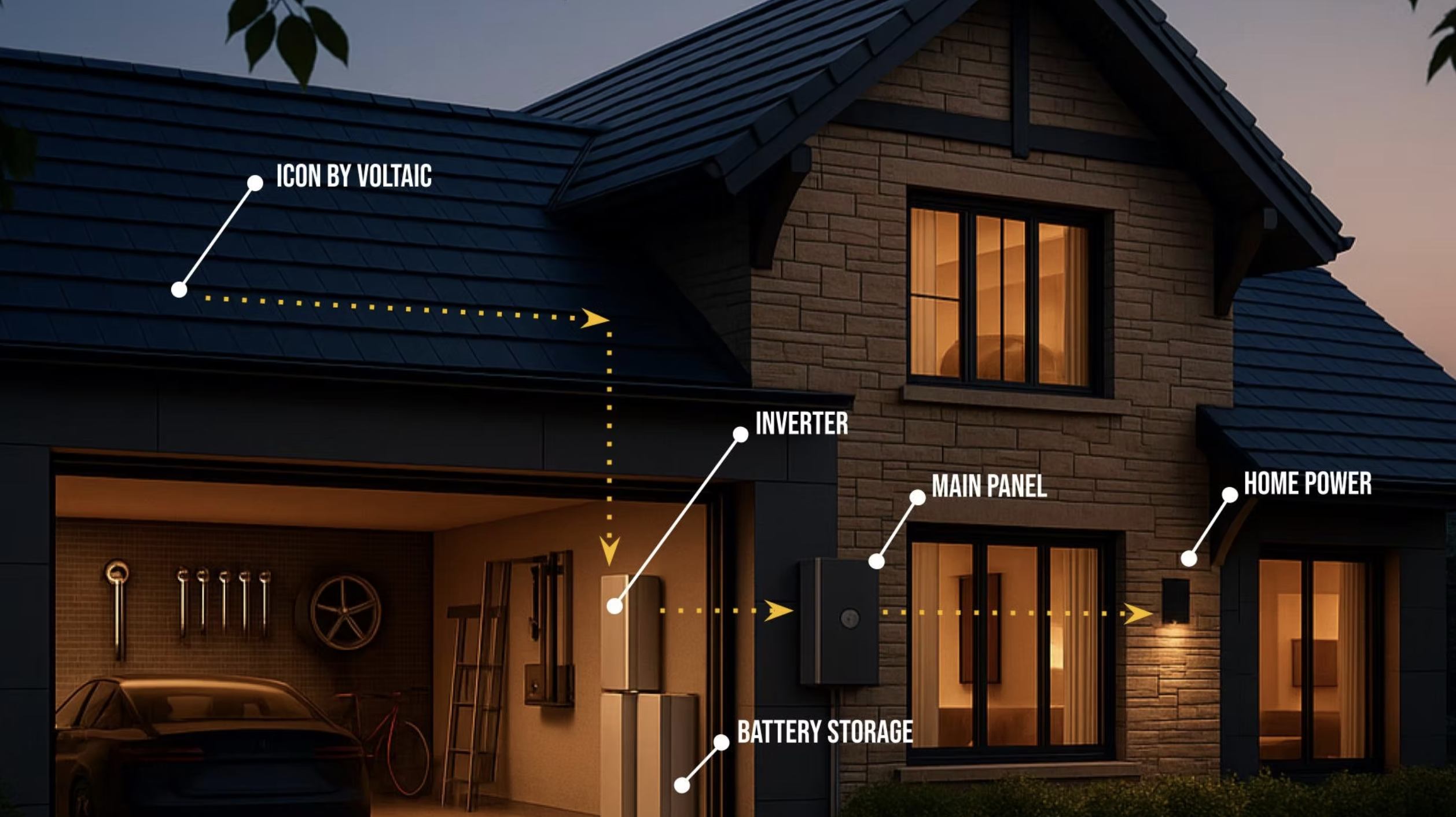

System diagram: ICON by Voltaic, inverter, battery storage, main panel, home power

What it's backed by

30
Year Roof Warranty
Coverage against weather-related failures on the roofing material itself.
25
Year Power Warranty
80% of original production guaranteed through year 25.
∞
Tile Warranty
Limited lifetime warranty on the concrete tile itself.

Certifications

UL 1703 and UL 61730
PV Safety and Construction Standard
IEC 61215
Performance Under Environmental Stress
Class A Fire Rating
ASTM E108 / UL 790
QAI Laboratories CERus 1047
Code Evaluation Report
NEC Article 690
Solar Photovoltaic Systems
Florida Building Code FL46604
HVHZ Approved
California Energy Commission
CEC Listed

Questions about what goes into the number or the material? See our FAQ.
